Mount a carbon handlebar

Composite does not like to work in compression. But this is how the handlebar and stem are fixed. So let’s see when we mount a carbon handlebar to preserve it!

Mechanical summary

The tools

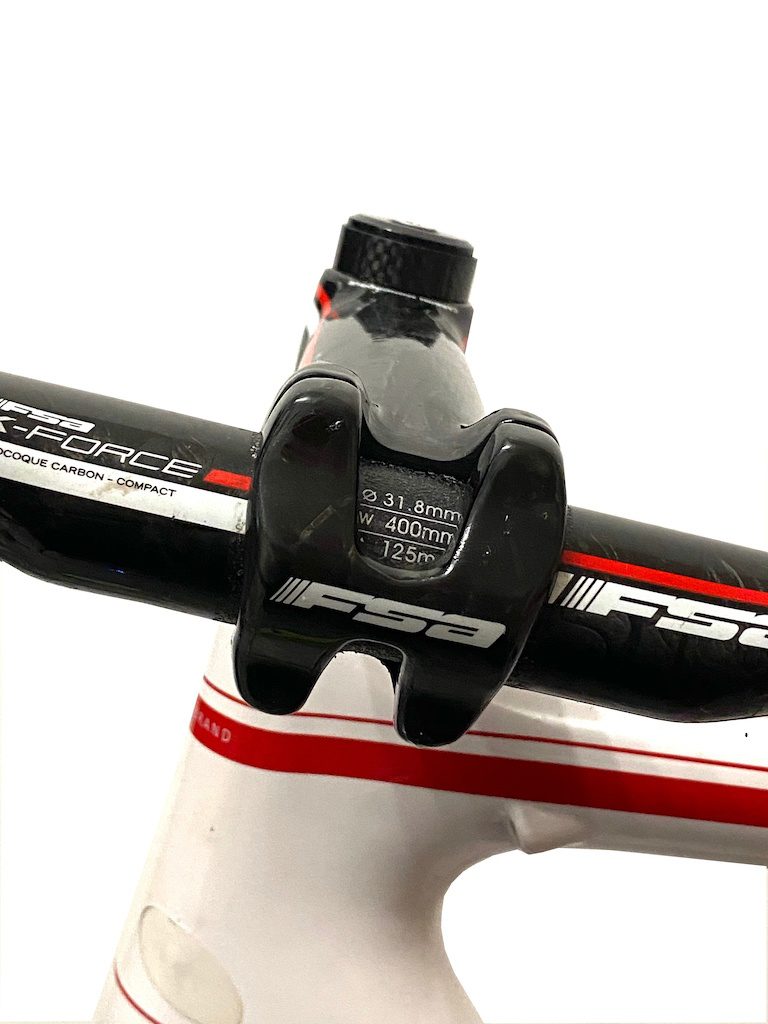

To ensure the assembly of its carbon handlebars, it will require composite paste or « gripping » paste to isolate the hanger-potence-pivot connections, Allen keys (4 or 5 mm) or Torx keys (T25 or T 30) to tighten the different screws and a torque wrench to lock the whole properly. Composite ions sometimes have specific clampings as on this old generation FSA K-Force where the screws are reversed.

Pictures © Frédéric Iehl

  • Montage d'un guidon carbone
  • Clé dynamométrique
  • Montage d'un guidon carbone

Temps et difficulté

Allow about twenty minutes to assemble your composite handlebar. There is nothing really difficult, everything is in the placement and practicality of tightening. Because torque wrenches are more or less « easy » to use… And they are mandatory! So don’t hurry.

Stage 1

Montage d'un guidon carbone

The pivot is degreased. Once well dry, any shims are placed.

Stage 2

The composite paste is then applied to the pivot.

Montage d'un guidon carbone

Stage 3

Montage d'un guidon carbone

The stem that has been degreased beforehand is placed.

If the pivot exceeds, an additional wedge is added above. There is more aesthetics, but if you need to raise your gallows you will be happy to have done that.

Montage d'un guidon carbone

Stage 4

Montage d'un guidon carbone

The steering hood and its compression screw are then placed.

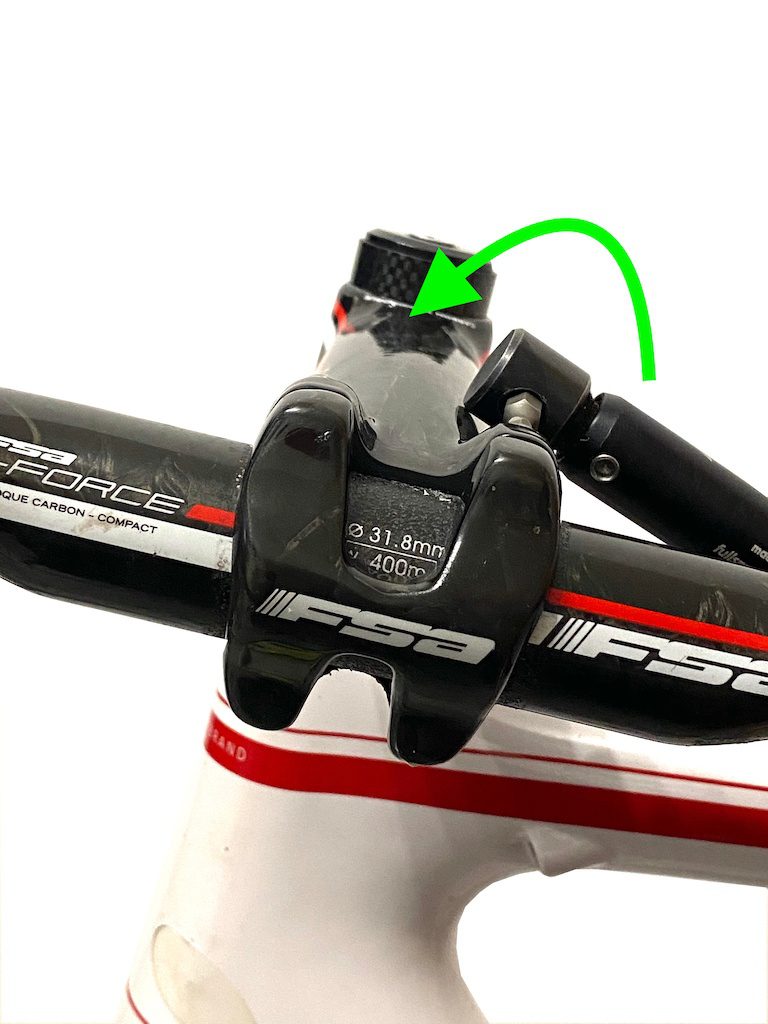

The latter is tightened to set the direction temporarily. We can’t ride like that… The stem will have to be tightened.

Montage d'un guidon carbone

Stage 5

We will degrease the hanger and the stem. It is necessary at all costs to avoid the slightest trace of lubricant that would make tightening completely ineffective. Even by squeezing very hard…

  • Montage d'un guidon carbone
  • Montage d'un guidon carbone

Composite paste is also applied here to increase the efficiency of the tightening torque.

Montage d'un guidon carbone

Stage 6

Montage d'un guidon carbone

We center the handlebar. When it’s new it’s easier, when it’s used we try to visualize the brands that remain…

Stage 7

The hood is placed by checking the centering. It will have been coated with front composite paste.

Montage d'un guidon carbone
Montage d'un guidon carbone

On the other hand, we grease the screws!

Stage 8

We start by installing a screw at the bottom.

Montage d'un guidon carbone
Montage d'un guidon carbone

The opposite upper screw is then placed.

We place the second screw from above.

Montage d'un guidon carbone
Montage d'un guidon carbone

And we put the last screw in place.

The screws are tightened evenly to keep the handlebar in place but allowing its rotation and sliding.

Publicités

Stage 9

  • Montage d'un guidon carbone
  • Montage d'un guidon carbone
  • Montage d'un guidon carbone

If necessary, we will adjust to the key. We don’t block anything, we just make tightenings that leave a small latitude of adjustment.

Stage 10

Once the screws are tightened, but not blocked, torque is tightened with the torque wrench.

Montage d'un guidon carbone

It is first settled to the requested couple, usually between 4 and 6 Nm.

Depending on the configuration of the gallows, it is more or less easy to use… Here the tightening being placed on the back of the gallows, the gait is more complex than when it is done from the front. A ratchet torque wrench is then welcome. The one we use is fixed…

  • Montage d'un guidon carbone
  • Montage d'un guidon carbone
  • Montage d'un guidon carbone
  • Montage d'un guidon carbone

So we start tightening with the torque wrench. When the 4 screws are blocked, a complete tightening lap is done in the same way. Then we will be quiet.

Stage 11

Montage d'un guidon carbone

The control levers will also be fixed by means of the torque wrench.

Stage 12

Once the clearance in the direction is adjusted, the stem can be tightened to finish the assembly of its carbon handlebars.

The stem is also tightened starting with the screw closest to the frame. So the one at the bottom.

Montage d'un guidon carbone
Montage d'un guidon carbone

We then move on to the top one.

We repeat the operation once in this direction and we are quiet! The use of composite or gripping paste increases the efficiency of the torque by about 1 to 2 Nm. Not negligible… In case of disassembly, it will be necessary to think about cleaning the surfaces. On the other hand, the slightest trace of lubricant makes the tightening ineffective. We then tend to exceed the pairs and split pivot hanger and stem….
